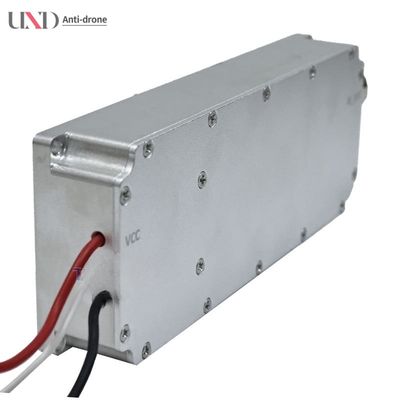

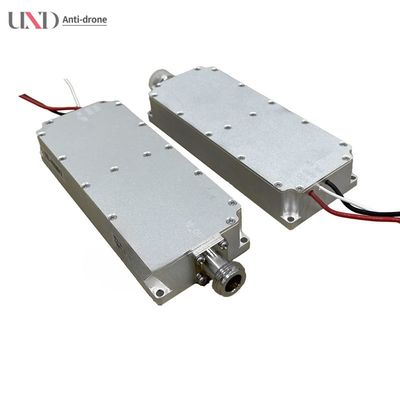

Customized 1.5GHz GaN RF Module 100W Amplifier Power for Anti-FPV Defense System 1550-1620Mhz Wireless & RF Modules

 Test Item

Indicator

Power

100W

Output Power(dBm)

50dBm

In-band group delay

<lus

Gain

45±1.0(external input 5dbm, power amplifier output 50dbm)

In-band fluctuation (dB)

<2.5 (peak-to-peak value)

Input voltage standing wave ratio

<1.35

Output voltage standing wave ratio

Supply voltage Typical

+30Vdc Range: 28-36V

Supply current

7A

Output RF connector

N-50KFD

Size

170x77x25mm (excluding connectors)

Input signal source

Built-in high-efficiency modulation sweep signal source, which can also be connected to external sources

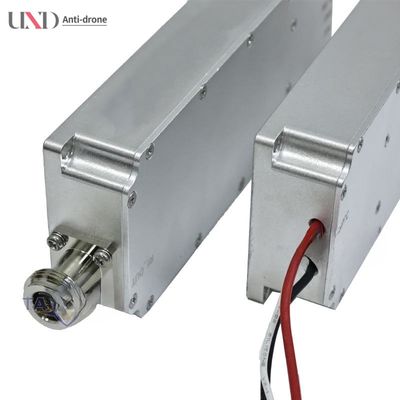

1 7W2 male socket 2 Feedthrough capacitors (from top to bottom)

1:    Al is the 30V power input, and A2 is GND; 2:    The first pin of 7W2 is the PA_SW power amplifier enable; 3:    The upper through-core capacitor is SRC_SW (internal signal source switch), high-on, low-off; 4:    The feedthrough capacitor below is PS_SW (internal and external source switch), high: external source; low: built-in source;
